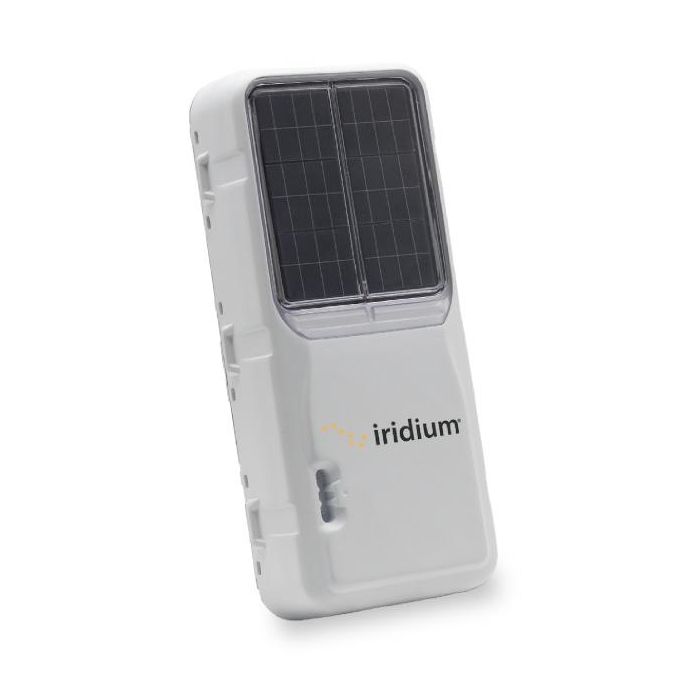

Iridium Edge Solar™

The new Iridium Edge Solar is designed to be a simple, low-cost, solar-based tracking device. Something you can attach to a boat, vehicle or other asset and then forget. Regular GPS tracking reports would then be sent from the unit, with the internal battery being recharged by the in-built solar panel.


The Iridium Edge® Solar is a standalone and programmable, solar-powered Short Burst Data (SBD®) device that offers real-time GPS tracking and local wireless sensor and communication capabilities over Bluetooth. The product’s self charging, low maintenance, long field life and over-the-air configuration allow Iridium Value-Added Resellers to create distinct tracking applications that can also be implemented to create even more complex solutions.  The Iridium Edge Solar is for customers who need a very simple tracking device that they can set-and-forget.  Therefore if you need a simple autonomous tracker, with global coverage, transmitting every few hours, this could be exactly what you need.



Features of the Iridium Edge Solar include:
• Autonomous GPS tracking
• Bluetooth capability for wireless sensor integration and local device connectivity
• Over-the-Air Configuration Changes
• Interval and Scheduled Reporting Modes
• Start/Stop Reporting/In Motion Reporting
• Fully Encapsulated, No External Connectors, Water Ingress Protected
• Accelerometer and Magnetometer
• LED Status Indicator

Power Management details:
• Photovoltaic Solar Cells, Rechargeable and Primary Batteries
• Smart Power Management System
• Up to 3-year Shelf Life
• Up to 10-Year Operational Service Life
• Back-up battery capacity provides 2x per day reporting for up to 5 years with no solar availability.

Key Markets:

  • Fleet Management
  • Remote Monitoring
  • SCADA
  • Asset Tracking
  • Maritime
More Information
PRODUCT TYPESATELLITE M2M
USE TYPEFIXED, MARITIME, VEHICULAR
BRANDIRIDIUM
MODELEDGE SOLAR
PART #EDGESOLAR9640
NETWORKIRIDIUM
CONSTELLATION66 SATELLITES
USAGE AREA100% GLOBAL
SERVICEIRIDIUM SBD
LENGTH164 mm
WIDTH71 mm
DEPTH33 mm
WEIGHT470 grams
FREQUENCYL BAND (1-2 GHz)
APPLICATIONSAGRICULTURE, ASSET & VEHICLE TRACKING, OIL & GAS, SURFACE MINING, TRANSPORTATION
INGRESS PROTECTIONIP 67
POWER REQUIREMENTSInternal Non-Rechargeable & Solar Chargeable Batteries
OPERATING TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
STORAGE TEMPERATURE-40ºC to 85ºC (-40ºF to 185ºF)
CERTIFICATIONSCE COMPLIANCE, FCC

Network:

  • Message Size: 240 bytes (Receive), 370 bytes (Transmit)
  • Frequency: 1616 – 1626.5 MHz

Interfaces:

  • RS232 AT command interface
  • On/Off control lines

Power:

    • Power Supply ( 9-32V), SAE J1455 Load dump protected
    • Reverse Polarity Protection
    • Maximum Power: 1.6W  (peak for short transmit burst)
    • Low Power Modes: < 100uA

Certifications:

  • Iridium® satellite network certification
  • FCC, IC, CE, Australia approvals
  • RoHS compliant

Iridium Global Coverage Map


Iridium Global Coverage Map

Iridium is the only provider of truly global satellite voice and data solutions with complete coverage of the earth (including oceans, airways and Polar Regions). Iridium phones deliver essential communications services to and from remote areas where no other form of communication is available.
