Iridium AD510-1 Passive Antenna

C$712.21

Buy 2 for C$690.84 each and save 3%
Buy 5 for C$676.60 each and save 5%
Buy 10 for C$640.99 each and save 10%

Overview

Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.

PART #:

AD510-1

WARRANTY:

12 MONTHS

Stock Status:

In stock

AVAILABILITY:

USUALLY SHIPS IN 2-3 BUSINESS DAYS

Product Code:

Iridium-AD510-1-Passive-Antena

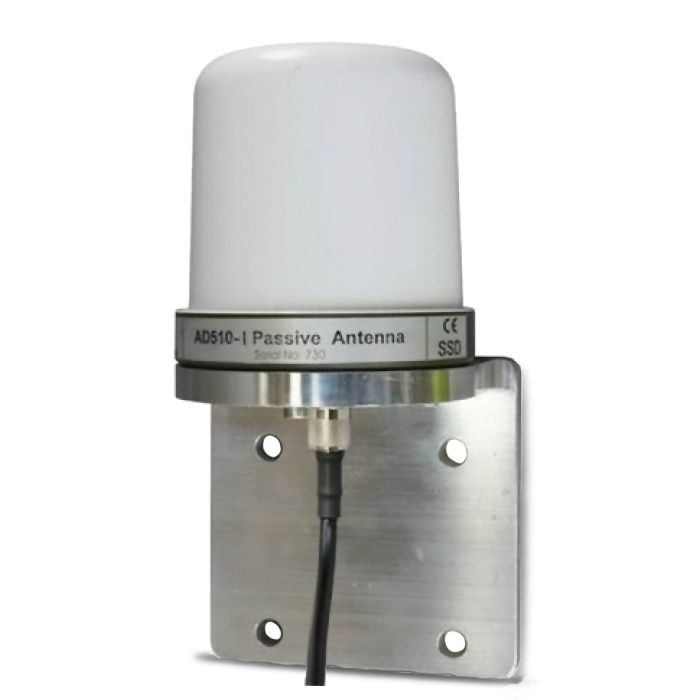

Iridium AD510-1 Passive Antenna
Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments. The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.

The bracket provided with each antenna can be attached to vertical or horizontal spars, up to 60 mm in diameter, using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC/N type on the underside of the antenna.

Passive Antenna utilises the Iridium satellite network.

More Information
PRODUCT TYPE	SATELLITE PHONE
USE TYPE	FIXED, MARITIME
PART #	AD510-1
NETWORK	IRIDIUM
USAGE AREA	100% GLOBAL
SERVICE	IRIDIUM VOICE
FEATURES	PASSIVE
FREQUENCY	L BAND (1-2 GHz)
ACCESSORY TYPE	ANTENNA
COMPATIBLE WITH	IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM 9500

Iridium AD510-1 Passive Antenna
