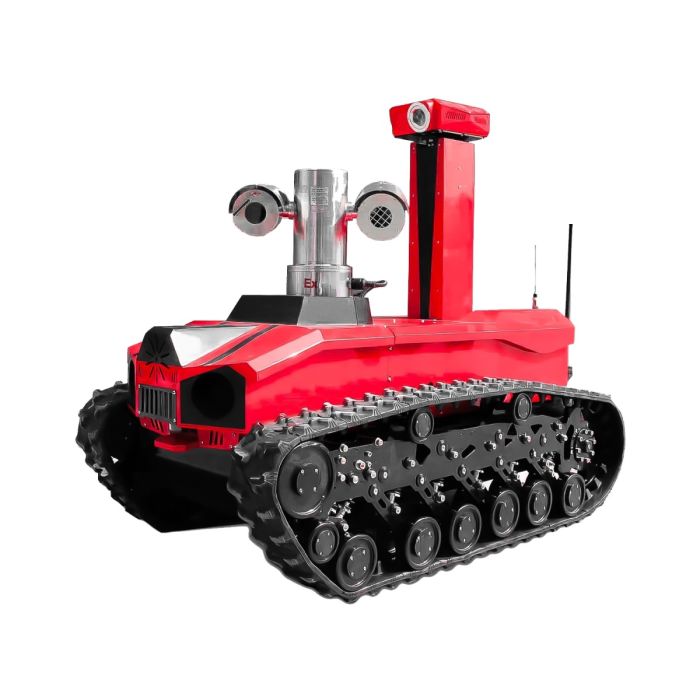

Guo Xing Explosion Proof Inspection Patrol Rescue Robot (RXR-C6BD)

Designed and produced according to GB3836-2010 explosion-proof standard.

Replace fire rescue personnel to enter the scene of inflammable,toxic, hypoxia, smoke  and other dangerous disasters and accidents for reconnaissance,

and effectively solve the personal safety of fire personnel in the above places.Simple body design, more stable,

with high power dc deceleration motor to make obstacles become particularly simple.

Products Features

• Whole vehicle with explosion-proof grade EX d ib IIB+H2 T6 Gb

• With 360 degree rotation and 90 degree pitch camera

• With 6 kinds of toxic and combustible gas detection function

• Strong power, can climb 38 degrees slope, and can stop on the slope, not landslide

• Lateral creep on a slope of 30 degrees without turning over

• The front end of the car is equipped with obstacle avoidance function, which can avoid obstacles

• With the language recognition function, the rear control personnel can clearly hear the scene sound

• Waterproof IP67

Product Function

• 360 monitor Pan-Tilt: 360°monitor for the surrounding environment of the robot

• Field image acquisition: 3-way camera is used to collect images around the robot,and video images are uploaded to the control center.

• Sound acquisition: sound collection around the robot body

• Lighting: double LED strong light

• Acoustic-optic alarm: the robot sends out acoustic-optic alarm under the running state of the robot body

• Automatic obstacle avoidance: always detect obstacles in front to avoid collision

• Gas detection: detect the concentration of toxic and harmful gas at the fire site and set up alarm.

• Temperature and humidity detection: detect the temperature and humidity of the surrounding environment of the robot
