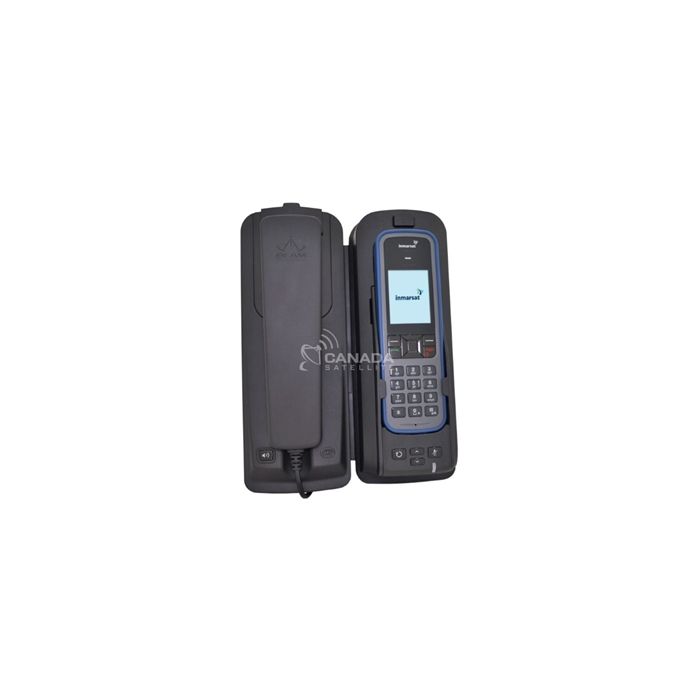

Beam IsatDock Pro for Inmarsat IsatPhone Pro

Beam IsatDock PRO is an intelligent docking station for the IsatPhone Pro specifically designed to support accessing voice services via Bluetooth, RJ11 / POTS, hands-free speaker phone or the active privacy handset attached to the unit.

In stock

BRAND:
BEAM
MODEL:
ISATDOCK PRO
ORIGIN:
Spain
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
SKU:
Inmarsat-Beam-IsatPhone-Pro
C$1,549.00
C$999.99
Loading...

Beam IsatDock Pro for Inmarsat IsatPhone Pro

Beam IsatDock Pro for Inmarsat IsatPhone Pro
Beam IsatDock PRO is an intelligent docking station for the IsatPhone Pro specifically designed to support accessing voice services via Bluetooth, RJ11 / POTS, hands-free speaker phone or the active privacy handset attached to the unit.

IsatDock Pro allows the IsatPhone Pro handset to be used in a wide variety of applications, the intelligent RJ11 / POTS interface enables cable runs of up to 600m to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.
The IsatPhone Pro handset, fits securely in the Dock which is also key lockable, other features include phone charging, USB *data port, inbuilt ringer and allows antenna and power to be permanently connected to the Dock ready for use. The IsatPhone Pro handset is easily inserted and removed by the press of a button on the top of the dock making it very easy to use away from the Dock when required.

. High quality ABS Plastic
. Single action insertion mechanism
. Key lockable & securable to wall/desk
. Wall or desk mounting options
. Accessible control buttons
. Slimline privacy handset
. Integrated antenna connections
. Inbuilt speaker / microphone
. Cable routing LHS/TOP/BOTTOM


OTHER KEY FEATURES . Active privacy handset
. Inbuilt handsfree speaker phone
. Status LED with adjustable brightness
. USB data access


BUTTONS ON DOCK . Ringer volume up/down
. In-call volume up/down
. Last number redial
. In-call mute
. Speaker/hands free button


POWER . 9 ? 32V DC Input
. Included 110/240V AC Plug pack


INTELLIGENT POTS/RJ11 INTERFACE . Support up to 600m of RJ11
. Dial, Ring & Busy Tones
. Integrated to PABX System
. Support standard corded & cordless phones
. Auto-dial & speed dials available

GSPS Network


Power Specifications Power Input Voltage
9 -32V DC


Physical Specifications
Dimensions ? mm
Dimensions - inches
IsatDOCK
270 x 189 x 101
10.6 x 7.4 x 4


Environment Specifications
Operating Range
Storage
Humidity
Degrees ?C
-20 to +55
-20 to +70
<= 75% RH
Degrees ?F
-4 to +131
-4 to +158


Connectors / Interfaces POTS/RJ11


Inmarsat Antenna
GPS Antenna
9-32 V DC

Privacy Handset Port
Configuration Port
Speaker phone
RJ11/2-wire, complex or 600 Ω, 5REN, 600m adjustable dial/busy tones/frequency, adaptive Z
TNC-Female
SMA-Female
4-way microFit (AC/DC adator, or DC lead)
RJ9 connector
USB Micro
Inbuilt speaker / microphone


KIT CONTENTS Pro IsatDOCK
110-240V AC Plug Pack
Privacy Handset
User Manual
Quick Start Guide
9-32 DC Power Cable
Handset locking Key

In building ? PBX integration
. Remote farms / communities
. Regional and remote offices / branches
. Back up office communications
. Emergency Communications
. Mine sites
. Recreational Vehicles / Motor homes



ISD710 Maritime Active Antenna
. ISD715 Transport Active Antenna (Magnetic)
. ISD720 Transport Active Antenna (Bolt)
. ISD700 Fixed Passive Antenna
. ISD932 6M cable kit
. ISD933 12m cable kit
. ISD934 18m cable kit
. ISD935 30m cable kit
. RST975 RJ 11 / POTS phone

Specifications

MODEL ISATDOCK PRO
PRODUCT TYPE SATELLITE PHONE
USAGE AREA GLOBAL (EXCEPT POLAR REGIONS)
BRAND BEAM
NETWORK INMARSAT
SERVICE INMARSAT VOICE
ACCESSORY TYPE DOCKING STATION
COMPATIBLE WITH ISATPHONE PRO
HARMONIZED TARIFF NUMBER 85176200
