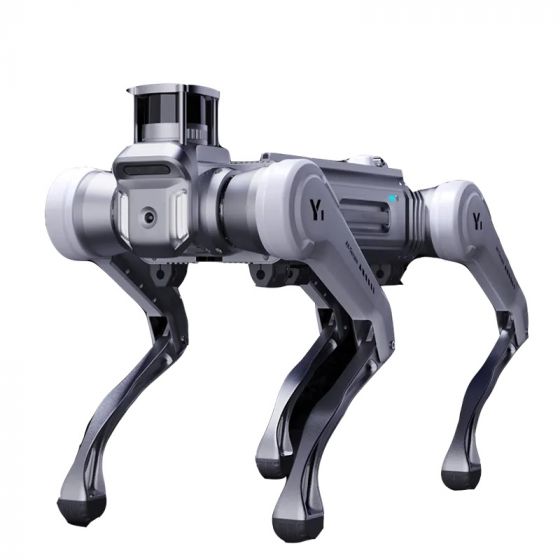

MagicLab MagicDog Y1: Advanced Industrial Quadruped Robot
The MagicDog Y1 is an industrial-grade quadruped robot, developed by MagicLab, is designed for rugged environments, offering all-weather performance, high payload capacity, and autonomous mobility. With an IP67-rated body, aviation-grade materials, and a focus on dynamic payload transport, the MagicDog Y1 intends to redefine what a four-legged robot can accomplish in industrial inspection, logistics and harsh terrain applications.
Structural Design
The MagicDog Y1 features a robust, aviation-grade body and sealed electronics to achieve full protection in demanding conditions. The IP67 rating means it is dust-proof and resistant to temporary immersion in water. Its frame supports a static payload capacity of up to 150 kg and a dynamic payload of approximately 45 kg during mobility operations.
Mechanical Mobility
Designed for mobility in uneven terrain, the MagicDog Y1 can handle slopes up to 45°, climb stairs of up to 25 cm and traverse gravel, rock and shallow water surfaces. Battery hot-swap capability ensures minimal downtime, enabling around-the-clock operation in outdoor and industrial deployments.
Sensor & Perception Systems
MagicLab has equipped the Y1 with a suite of sensors including one 3D LiDAR, two depth-vision cameras and two optical cameras for high-fidelity perception. With built-in centimeter-level positioning, dynamic obstacle avoidance algorithms, and modular expansion support (thermal imagers, gas sensors), the Y1 is built as a plug-and-play open platform for system integrators.
Artificial Intelligence (AI) & Autonomy: Onboard high-performance 8-core CPU with compute accelerator module handles navigation, perception and control.
Actuation: High-torque electric servo actuators drive four-legged mobility under heavy payload.
Environmental Robustness: Operational temperature range from –20 °C to +55 °C.
Connectivity & Control: WiFi 6, Bluetooth 5.2 connectivity, EtherCAT and multi-power network ports for external module integration.
| Parameter | Value |
|---|---|
| Dynamic Payload | 45 kg |
| Static Payload | 150 kg |
| Max Slope | Up to 45° |
| Max Step Height | ~25 cm |
| Max Speed | Up to ~6 m/s (≈13.4 mph) |
These specifications reflect the Y1’s orientation toward industrial deployment rather than consumer toy markets.
The MagicDog Y1 excels in remote infrastructure inspection, oil & gas pipeline monitoring, power-grid surveillance, and harsh terrain surveying — thanks to its all-weather resilience and heavy payload capacity.
With the ability to carry heavy dynamic loads, the Y1 can be deployed in multi-level warehouses, construction sites and logistic hubs where wheeled vehicles may face limitations (stairs, slopes, rubble).
Given its high agility, waterproofing, and environmental robustness, the Y1 is a strong candidate for search-and-rescue operations in disaster-affected or hazardous terrain, enabling human-free reconnaissance and payload delivery.
The open platform architecture attracts robotics researchers and system integrators who augment the Y1 with thermal imagers, gas sensors or specialized modules for experimental robotics tasks.
All-weather durability: IP67 sealing and wide temperature activation enable deployment in extreme environments.
High dynamical capability: Ability to carry up to 45 kg dynamically expands possible use-cases beyond simple quadrupeds.
Open platform modularity: Plug-and-play sensor modules allow customization for niche applications.
Mobility versatility: Stairs, slopes, and various terrains are navigable – enabling broader deployment compared to fixed-wheel robots.
Reduced downtime: Hot-swap battery design encourages continuous operation in industrial settings.
These benefits make the MagicDog Y1 a compelling option for mission-critical robotics in industrial, research and service contexts.
Compared to other similar industrial quadruped robots, the Y1 distinguishes itself with high payload and modular expansion:
vs. Spot (by Boston Dynamics): Spot offers advanced agility and commercial maturity but is typically more expensive and optimized for different payload ranges.
vs. Go2/Go1 (by Unitree Robotics): Unitree’s offerings aim at affordable quadrupeds, while MagicDog Y1 targets heavy industrial performance and robust specifications (45 kg dynamic payload vs typical ~10 kg).
vs. ANYmal (by ANYbotics): ANYmal focuses on inspection in structured industrial environments; the Y1 emphasizes broader terrain adaptability and heavier payload.
Thus, MagicDog Y1 occupies a niche between affordable research quadrupeds and high-end industrial locomotion platforms.
What is the MagicLab MagicDog Y1?
The MagicDog Y1 is an industrial quadruped robot by MagicLab, designed for all-weather operation, heavy payload transport and autonomous navigation in complex terrains.
How does the MagicDog Y1 work?
It combines AI-powered navigation, LiDAR/stereo vision sensors, servo-actuated legs and high-torque mechanisms to walk, carry and traverse slopes, stairs and challenging surfaces while managing a heavy dynamic load.
Why is the MagicDog Y1 important?
It bridges the gap between research-only quadrupeds and industrial-grade load-carrying robots, enabling real-world deployment of legged mobility in logistics, inspection and disaster-response zones.
What are the benefits of the MagicDog Y1?
Benefits include high payload agility, terrain versatility, robust all-weather design, plug-and-play modularity and suitability for industrial, research and service robotics markets.
The MagicLab MagicDog Y1 stands as a high-end industrial quadruped robot designed for challenging environments, heavy payloads, and autonomous operation. With its advanced sensor suite, rugged design, and open architecture, it offers versatile applications across inspection, logistics, research and more. As legged robotics continues to evolve, the Y1 illustrates a significant step toward practical deployment of intelligent mobility robotics in real-world industrial settings.
| ROBOT TYPE | QUADRUPED |
|---|---|
| MODÈLE | MAGICDOG Y1 |
| HEIGHT | 91.5 cm |
| LARGEUR | 45.8 cm |
| PROFONDEUR | 80.0 cm |
| POIDS | 65 kg w/ Battery |
| INGRESS PROTECTION | IP 67 |
| TEMPÉRATURE DE FONCTIONNEMENT | -20°C to 55°C |
