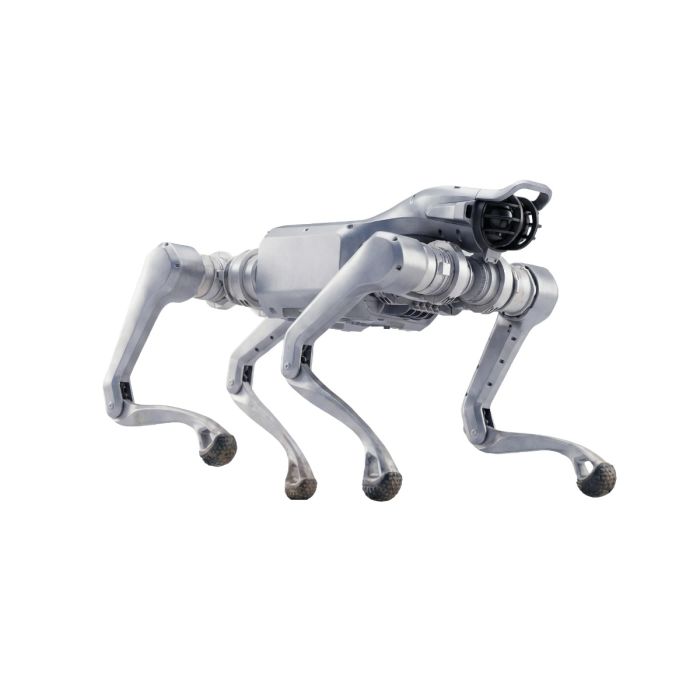

Unitree As2 EDU Standard Quadruped Robot Dog

Unitree As2 EDU Standard (EDU-U1) — Your Gateway to Open Quadruped AI Development Powerful Motors, Exceptional Payload Maximum joint torque: Approx. 90 N·m, torque-to-weight ratio: Approx. 5 N·m/kg (self-weight: 18 kg). All-Weather.

In stock

MARQUE:: UNITREE ROBOTICS
MODÈLE:: AS2 EDU STANDARD
NUMÉRO DE PIÈCE #:: As2 EDU-U1
ORIGIN:: Chine
Warranty:: 12 MOIS
AVAILABILITY:: SUBJECT TO AVAILABILITY
SKU:: Unitree-AS2-EDU

17 173,16 C$

Unitree As2 EDU Standard (EDU-U1) — Your Gateway to Open Quadruped AI Development

Powerful Motors, Exceptional Payload

Maximum joint torque: Approx. 90 N·m, torque-to-weight ratio: Approx. 5 N·m/kg (self-weight: 18 kg).

All-Weather Adaptability, Reliable Operation

IP54 rainproof design, stable performance in complex weather and environments.

The Unitree As2 EDU Standard is the entry-level configuration of Unitree's most advanced developer-focused robot dog. It packages the full industrial-grade As2 EDU mechanical platform with an NVIDIA Jetson Orin Nano (40 TOPS) high-performance expansion dock — giving engineers, researchers, and robotics teams an immediate foundation for custom AI, navigation, and locomotion development.

Key Features

NVIDIA Jetson Orin Nano — 40 TOPS onboard AI compute for deploying neural networks, perception pipelines, and embodied AI models directly on the robot
90 N·m Maximum Joint Torque — The highest in the As2 family; precise, responsive movement across all terrain types
Industrial 64–128-Line LiDAR — Wide-angle spatial perception for mapping and obstacle avoidance
IP54 Protection — Dust and rain resistant; built for indoor labs and outdoor field conditions alike
GPS + 4G (included, user-authorized activation)
4+ Hours Runtime / ~20 km Range unloaded; 2.5 hours / ~13 km with a 15 kg payload
15,000 mAh Battery + Fast Charging (51V 9A) + Charging Pad included
Custom Development Supported — Robot models, simulation interfaces, full Isaac Sim compatibility
Depth Camera: Optional add-on
1-Year Warranty + comprehensive development manuals and ecosystem support

Technical Specifications

Spec	Value
Compute	NVIDIA Jetson Orin Nano (40 TOPS)
Max Joint Torque	~90 N·m
Travel Speed	0–3.7 m/s (peak ~5 m/s)
Max Standing Load	~65 kg
Walking Load	~15 kg
Stair Climbing	25 cm
Gradeability	~40°
Protection	IP54
LiDAR	Industrial 64–128-line
Depth Camera	Optional
Battery	15,000 mAh
Runtime (unloaded)	4+ hours / ~20 km
Runtime (15 kg)	~2.5 hours / ~13 km
GPS / 4G	Yes (auth required)
Isaac Sim	Supported
Custom Dev	Supported
Warranty	1 year

Spécifications

Degrees of Freedom

3 mÈtres/seconde

Max Speed

JUSQU'À 2 HEURES

Runtime

Général

MARQUE UNITREE ROBOTICS

MODÈLE AS2 EDU STANDARD

NUMÉRO DE PIÈCE # As2 EDU-U1

TYPE DE ROBOT QUADRUPÈDE

UTILISATION DES ROBOTS INDUSTRIEL

Physical

LONGUEUR 72.0 cm

LARGEUR 37.8 cm

PROFONDEUR 45.7 cm

POIDS Environ 18 kg

Mobility

DOF TOTAL 12 DDL

Performance

VITESSE MAXIMALE 3 MÈTRES/SECONDE

ANGLE DE PENTE 30 DEGRÉS

TEMPÉRATURE DE FONCTIONNEMENT -20°C À 50°C (-4°F - 122°F)

Connectivity

CONNECTIVITÉ BLUETOOTH 5.2, WI-FI 6

Software

DÉVELOPPEMENT SECONDAIRE NON PRIS EN CHARGE

Batterie + Alimentation

DURÉE D'EXÉCUTION JUSQU'À 2 HEURES
